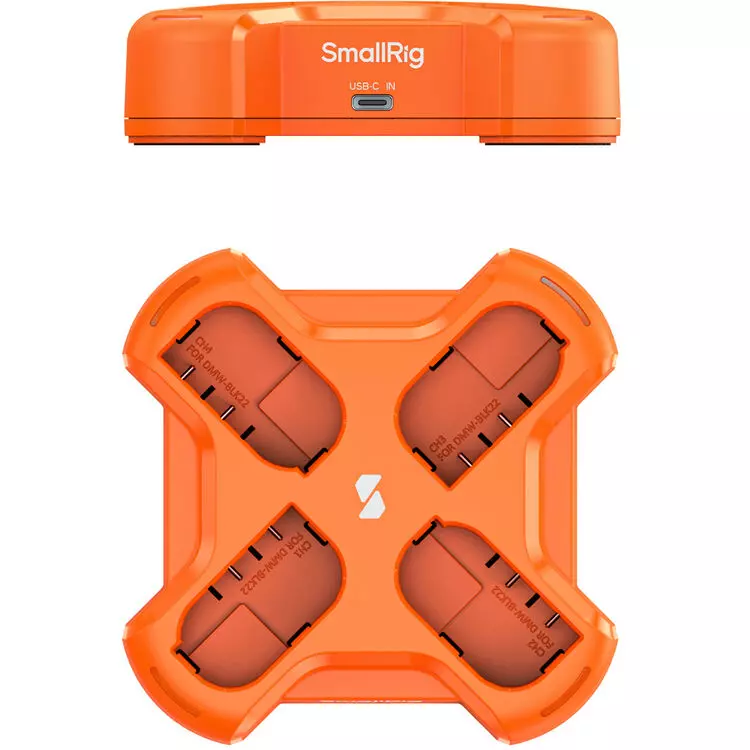

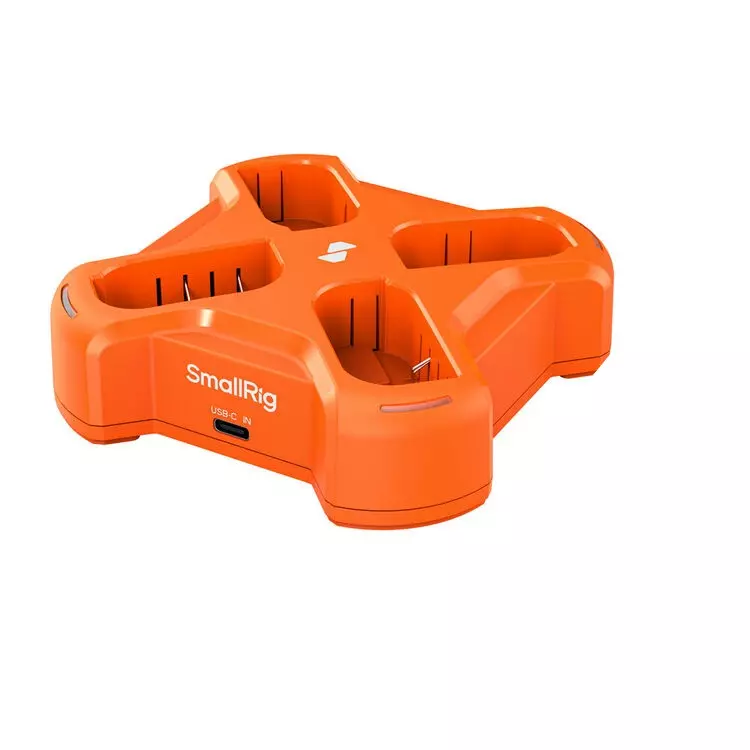

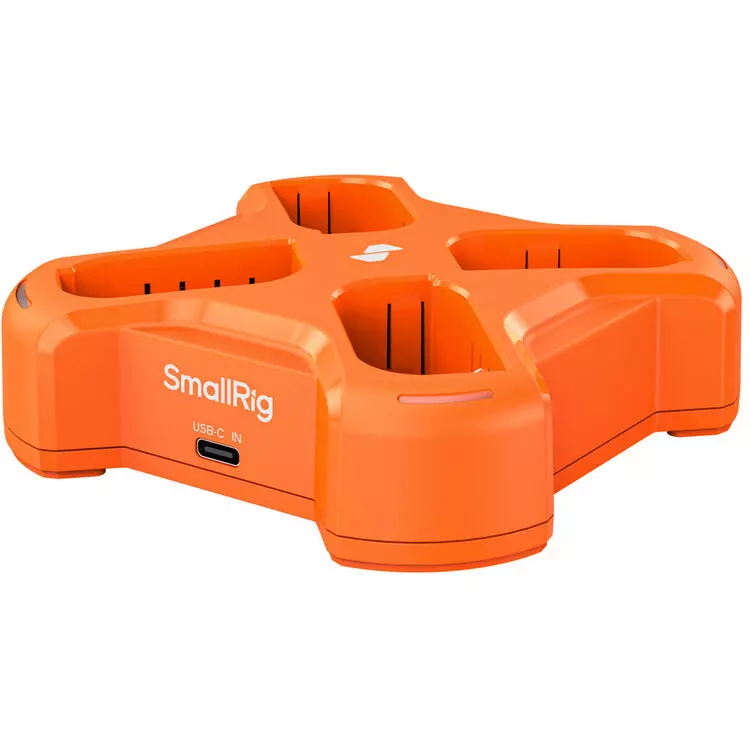

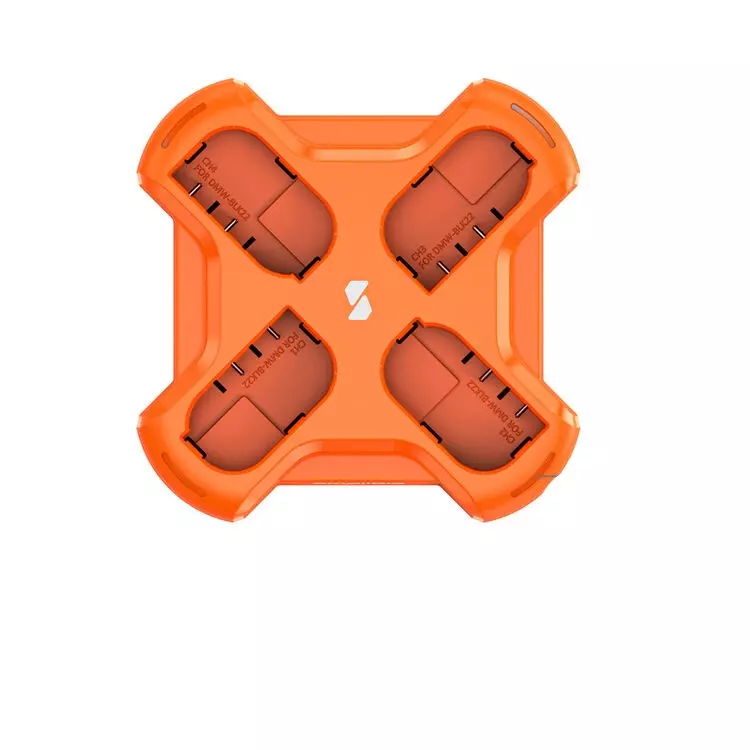

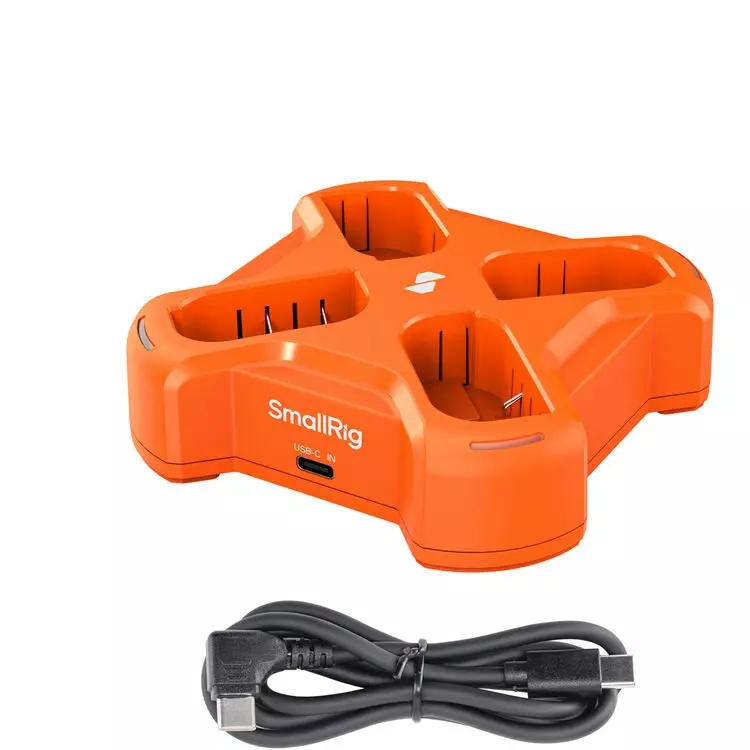

SmallRig 5748 Four-Channel Camera Battery Charger for DMW-BLK22
49,90 €
A high-efficiency, high-power charger designed for DMW-BLK22 batteries. With a 45W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power. The four dedicated channels allow f
In stock (Varastossa 3 kpl)
Katso yritysasiakkaan maksuvaihtoehdot
Toimituskulut
SmallRig 5748 Four-Channel Camera Battery Charger for DMW-BLK22Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.Certifications: Quality Inspection Report / FCC / CE / PSE / KC / RCMCharging Time:Battery Capacity: 2600mAh Full Charge: 4 batteries in 3 hoursNote: For optimal performance, it is recommended to use a USB-C charger with an output power of 45W or higher.The number of charging channels activated based on the adapter's voltage: 5V activates 1 channel 9V activates 2 channels 12V activates 3 channels 15V activates all 4 channels.If a higher-voltage battery is inserted during charging, the system prioritizes charging it first until it is fully charged.Technical data:USB-C Input: 5V?2A, 9V?2A, 12V?2A, 15V?3A (Max 45W)Output (per channel): 8.4V?0.9A, 8.4V?1.8A, 8.4V?2.5AUSB-C Protocol: PDCharge Limit Voltage: 8.45VOperating Temperature: 5°C – 45°CCompatibility:DC-S5, DC-S5K, DC-S5II, DC-S5IIX, DC-S5M2, DC-S5M2X, DC-GH5M2, DC-GH6, DC-GH6L, DC-GH7, and other cameras using DMW-BLK22 batteries.Packaging includes:DMW-BLK22 Four-Channel Charger65W USB-C to USB-C Charging CableUser Manual
