DJI, E-Port V2 Development Kit Matrice 400

DJI, E-Port V2 Development Kit Matrix 400

Designed for the DJI Matrice 400 drone, the E-Port V2 Development Kit converts the drone's E-Port V2 port into a variety of standard hardware interfaces. The onboard MCU microcontroller facilitates third-party device connectivity, SDK software development, and debugging.

Compatibility: DJI Matrice 400

• Development board dimensions: 89 × 60 × 13.4 mm (length × width × height)
• XT30 VCC output: 13.8 V / 17.02 V / 24 V, 5 A
• XT30 12V output: 12V/4A
• XT30 5V output: 5V/4A

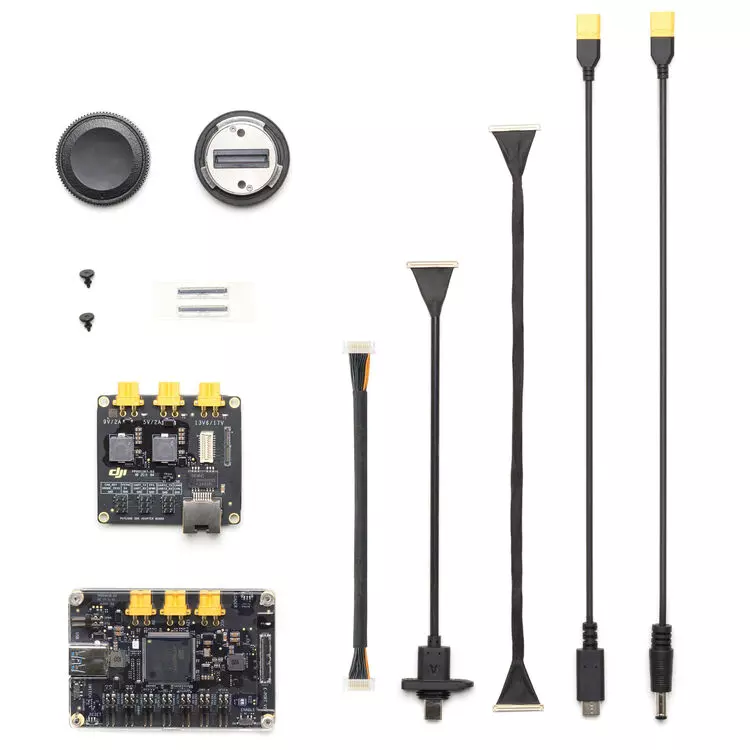

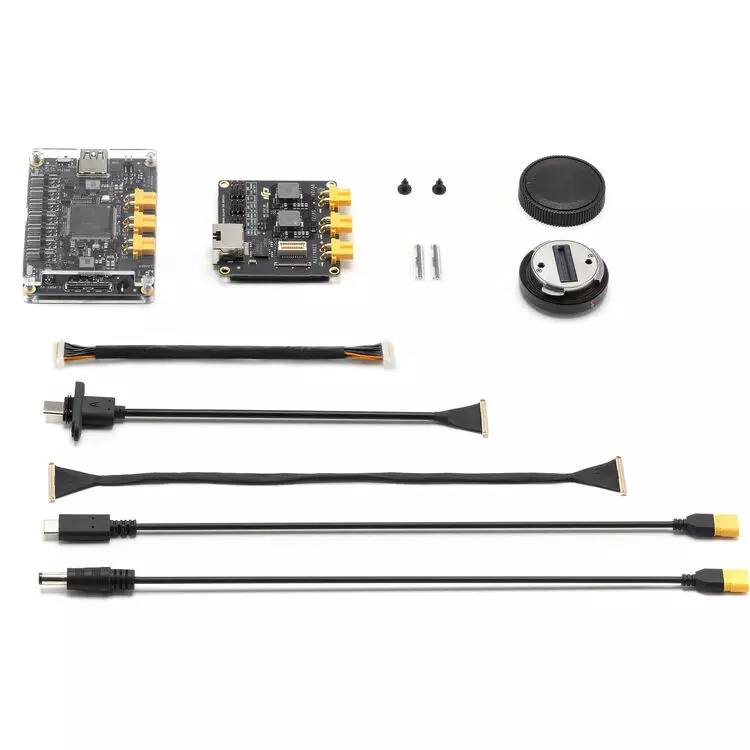

Package contents:

• 1 × DJI E-Port V2 Development Board
• 1 × DJI E-Port V2 Coaxial Cable
• 1 × XT30 – DC5.5 Power Cable
• 1 × XT30 – USB-C Power Cable
• 1 × SKYPORT V3 Coaxial Cable
• 2 × SKYPORT V3 Coaxial Cable Connectors
• 1 × SKYPORT V3 Adapter
• 1 × X-Port Adapter Board
• 1 × X-Port Cable
